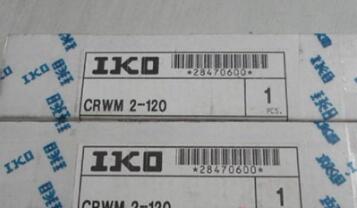

Identification number: CRWM2-120

Type: IKO linear crossed roller guide ways, CRWM series

Mass - Way: 0.99 kg/m

Mass - Roller cage: 0.98 g (shows the mass of a roller cage with ten cylindrical rollers)

A: 24 mm

H: 6.5 mm

L(n X F): 120 (7x15)

i: 0.5 mm

Dw: 2 mm

R: 101.6 mm

Z: 25

p: 4 mm

e: 2.8 mm

W1: 19 mm

W2: 11 mm

E1: 7.5 mm

E2: 15 mm

M: M3

d1: 2.55 mm

d2: 4.4 mm

h: 2 mm

D: 3 mm

Dim. D tolerance: +0.010 0 mm

t: 1.5 mm

Cu: 0.293 KN, Basic dynamic load rating the value shows the load of a cylindrical roller.

C0u: 0.294 KN, Basic static load rating the value shows the load of a cylindrical roller.

Fu: 97.9 N, Allowable load the value shows the load of a cylindrical roller.
