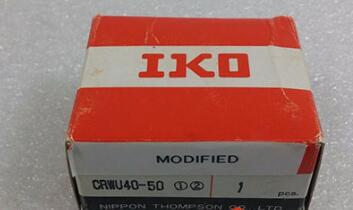

Identification number: CRWU40-50

Type: IKO linear crossed roller guide ways, CRWU series

Mass (Ref.): 0.3 kg

W: 40 mm

Dim. W tolerance: +-0.1 mm

H: 21 mm

Dim. H tolerance: +-0.1 mm

L: 50 mm

t1: 7 mm

t2: 8 mm

t3: 5.5 mm

Maximum stroke length: 30 mm

W3: 15 mm

W4: 12.5 mm

N X P: 1X15 mm

E: 17.5 mm

M: M3 mm

W5: 30 mm

W6: 5 mm

L1: 40 mm

E1: 5 mm

L2: mm

E2: mm

L3: mm

E3: mm

d1: 3.5 mm

d2: 6 mm

h1: 3.2 mm

h2: 6 mm

Basic dynamic load rating C: 2.71 KN

Basic static load rating C0: 3.66 KN

Allowable load F: 1220 N

Static moment rating T0: 26.5 N.m
