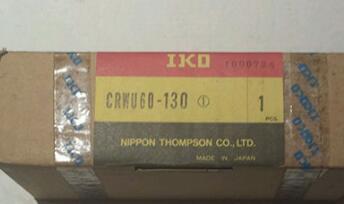

Identification number: CRWU60-130

Type: IKO linear crossed roller guide ways, CRWU series

Mass (Ref.): 1.6 kg

W: 60 mm

Dim. W tolerance: +-0.1 mm

H: 28 mm

Dim. H tolerance: +-0.1 mm

L: 130 mm

t1: 10.5 mm

t2: 8 mm

t3: 9 mm

Maximum stroke length: 75 mm

W3: 25 mm

W4: 17.5 mm

N X P: 3X25 mm

E: 27.5 mm

M: M4 mm

W5: 40 mm

W6: 10 mm

L1: 110 mm

E1: 10 mm

L2: mm

E2: mm

L3: mm

E3: mm

d1: 4.5 mm

d2: 7.5 mm

h1: 4.5 mm

h2: 9.5 mm

Basic dynamic load rating C: 5.86 KN

Basic static load rating C0: 9.75 KN

Allowable load F: 3250 N

Static moment rating T0: 137 N.m
